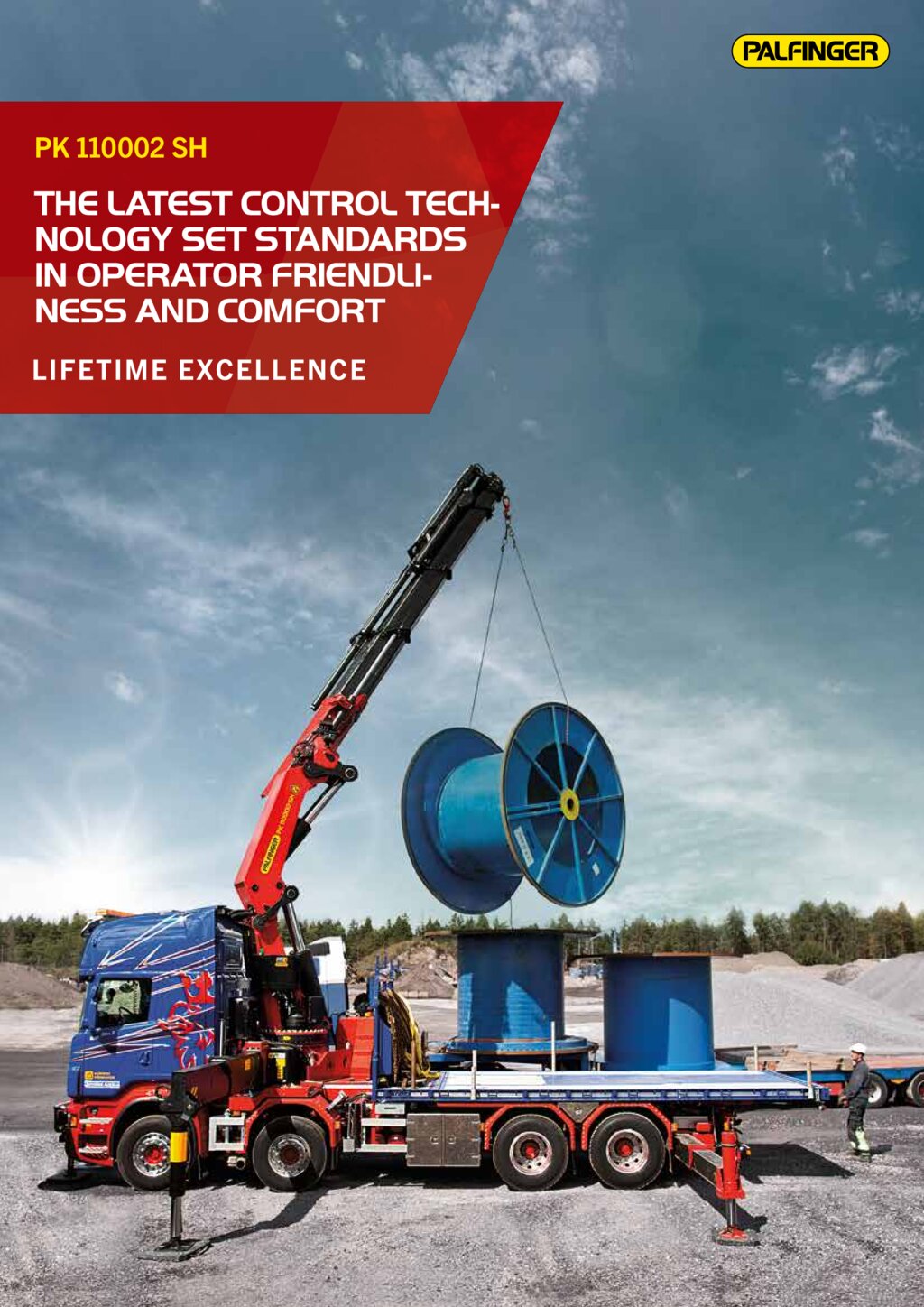

PK 110002 SH High Performance
Description
The latest control Technology set standards in Operator friendliness and comfort
- Maximum utilisation of the working range due to HPSC
- More lifting power due to S-HPLS
- High degree of user-friendliness thanks to optional radio remote control
- Additional applications with Power Link Plus
- More efficiency with fly jib due to DPS Plus
Attributes
Max. lifting moment
98.5 mt
Max. lifting capacity
30000 kg
Max. hydraulic outreach
22.0 m
Max. manual outreach
27.1 m
Max. outreach (with fly jip)
34.3 m
Slewing angle
∞
Slewing torque with 2 gears
9.0 mt
Stabilizer spread (std)
8.6 m
Fitting space required (std)
2.31 m
Width folded
2.55 m
Max. operating pressure
365 bar
Pump capacity
110 - 130 l/min
Dead weight (std.)
8825 kg
Lifting moment
Outreach
Slewing angle
Slewing torque (mt)
Pressure
Pump capacity (l/min)
Crane Weight
Crane Height
Crane Width
Installation WidthB
93.5
9.3
∞
9.0
36.5
110-130
8830
2595
2550
2305
