PK 1350 TEC

Description

  • Gross vehicle weight of 32 t – fully equipped with 2500 to 3000 kg payload capacity (four-axle truck)
  • Gross vehicle weight of 40 t – fully equipped with 8000 kg payload capacity (five-axle truck)
  • High mobility due to the mounting on standard truck chassis
  • Very stiff and light boom system thanks to P-Profile
  • More intelligent operation with PALTRONIC 180 control electronics
  • Extra smooth control thanks to LX-6 control valve
  • Additional applications with Power Link Plus
  • More efficiency with fly-jib due to DPS-C
  • Maximum utilisation of the working range thanks to extended HPSC
  • Increased comfort and safety due to Soft Stop
  • Practical and attractive due to Functional Design

Attributes

Max. lifting moment
109.3 mt
Max. lifting capacity
30000 kg
Max. hydraulic outreach
21.9 m
Max. manual outreach
38.7 m
Slewing angle
∞
Slewing torque with 2 gears
10.6 mt
Stabilizer spread (std)
10.0 m
Fitting space required (std)
2.55 m
Max. operating pressure
385 bar
Pump capacity
2x 100 - 130 l/min
Dead weight (std.)
10170 kg
Lifting moment

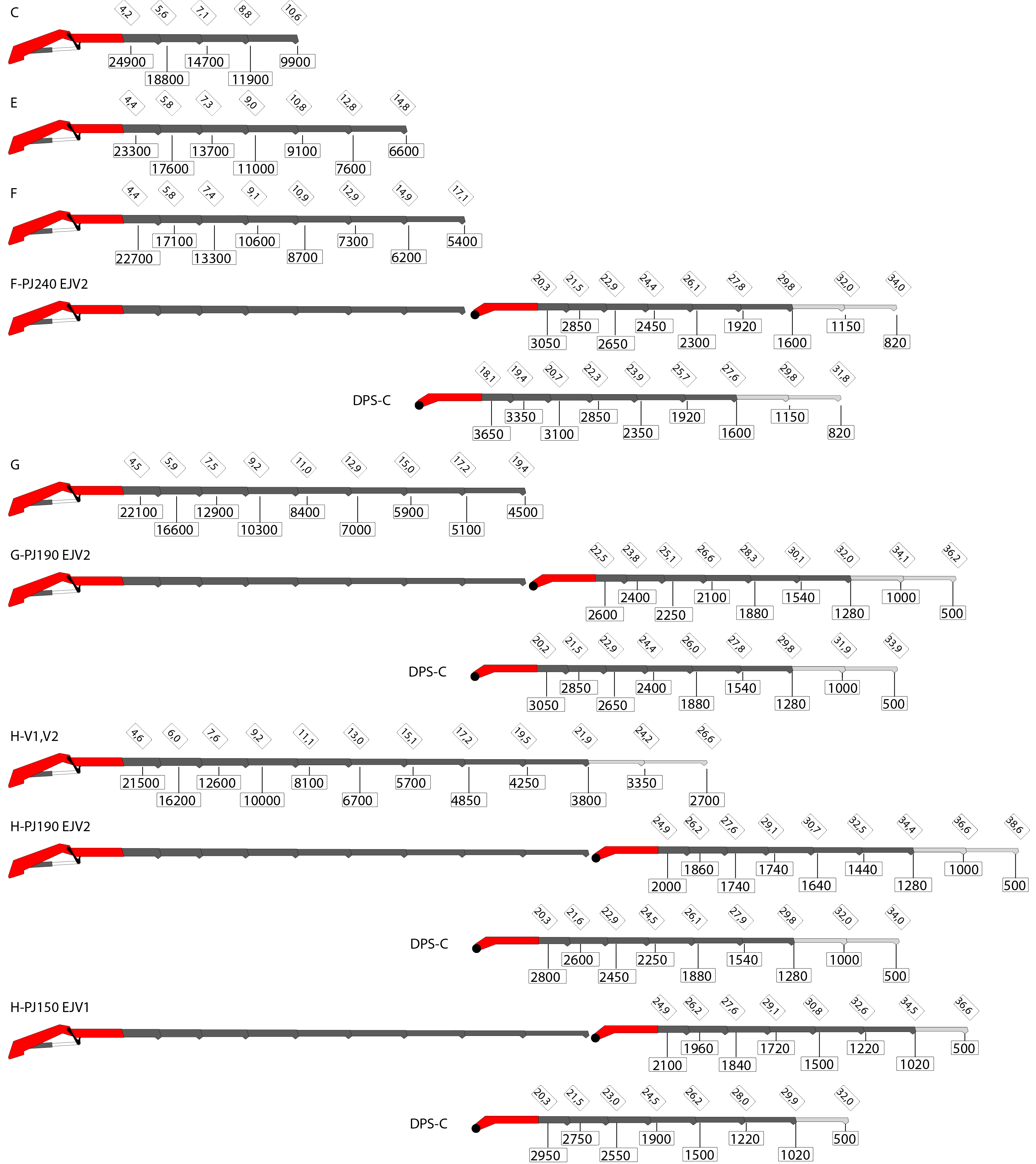

Outreach
Slewing angle
Slewing torque (mt)
Pressure
Pump capacity (l/min)

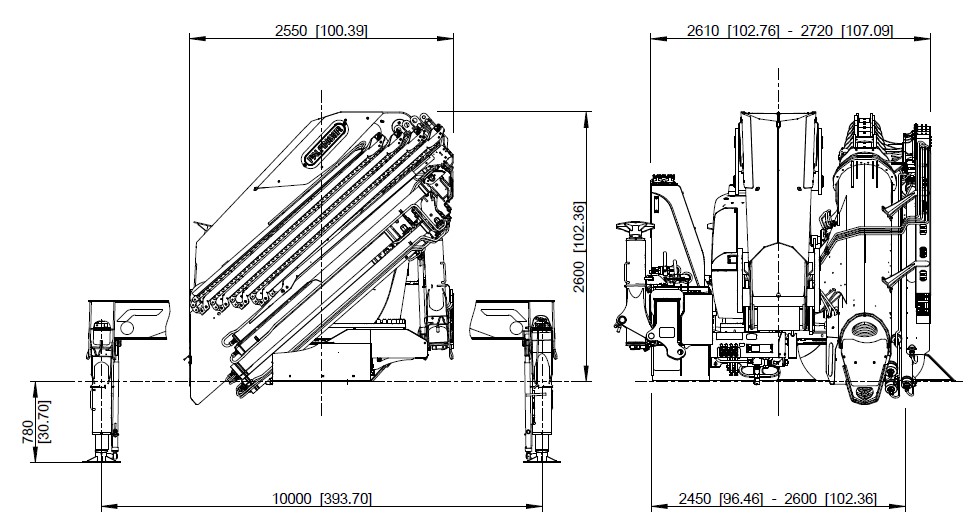

Crane Weight
Crane Height
Crane Width
Installation Width

Brochures

PK 1350 TECT
Download file
Download file
