PK 19502 High Performance
Description
Its compact dimensions and low dead weight allows an optimised mounting concept
- Maximum utilisation of the working range due to HPSC
- Increased operating times thanks to low-maintenance extension system
- High value retention thanks to coating technology
- Additional applications with Power Link Plus
Attributes
Max. lifting moment
18.8 mt
Max. lifting capacity
6100 kg
Max. hydraulic outreach
17.1 m
Slewing angle
400°
Slewing torque
2.3 mt
Stabilizer spread (std)
5.0 m
Fitting space required (std)
0.91 m
Width folded
2.53 m
Max. operating pressure
320 bar
Pump capacity
45 - 65 l/min
Dead weight (std.)
2391 kg
Lifting moment
Outreach
Slewing angle
Slewing torque (mt)
Pressure
Pump capacity (l/min)
Crane Weight
Crane Height
Crane Width
Installation WidthA
18.1
8.2
400
2.3
32.0
45-65
2391
2330
2550
910
B
17.7
10.4
400
2.3
32.0
45-65
2559
2330
2550
910

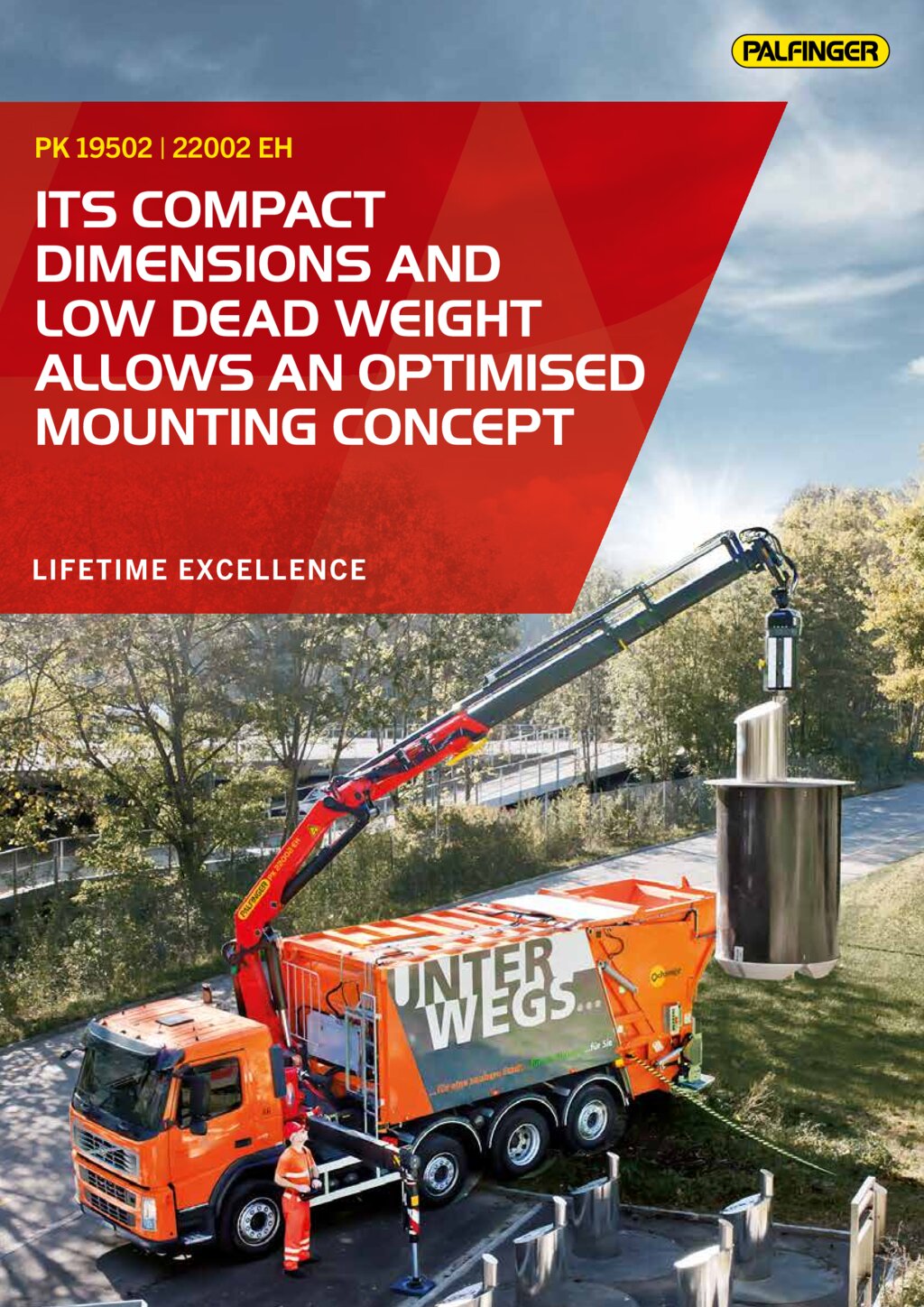

Brochures
