PK 27002 SH High Performance
Description
Functional Design. Protection for sensitive components enhances appearance and long-term value retention.
- More efficient and faster due to continuous slewing system
- Additional applications due to Power Link Plus
- Increased operating times due to low-maintenance extension system
- Higher payloads due to intelligent lightweight design
- More comfort and safety due to Soft Stop
Attributes
Max. lifting moment
26.0 mt
Max. lifting capacity
9300 kg
Max. hydraulic outreach
21.3 m
Max. manual outreach
23.3 m
Max. outreach (with fly jip)
29.4 m
Slewing angle
∞
Slewing torque with 1 gear
2.8 mt
Slewing torque with 2 gears
3.4 mt
Stabilizer spread (std)
5.6 m
Fitting space required (std)
1.01 m
Width folded
2.55 m
Max. operating pressure
365 bar
Pump capacity
80 - 110 l/min
Dead weight (std.)
2679 kg
Lifting moment
Outreach
Slewing angle
Slewing torque (mt)
Pressure
Pump capacity (l/min)
Crane Weight
Crane Height
Crane Width
Installation WidthA
25.3
8.1
∞
2.8 / 3.4
36.5
80-110
2722
2330
2550
1010
B
24.7
10.2
∞
2.8 / 3.4
36.5
80-110
2903
2330
2550
1010

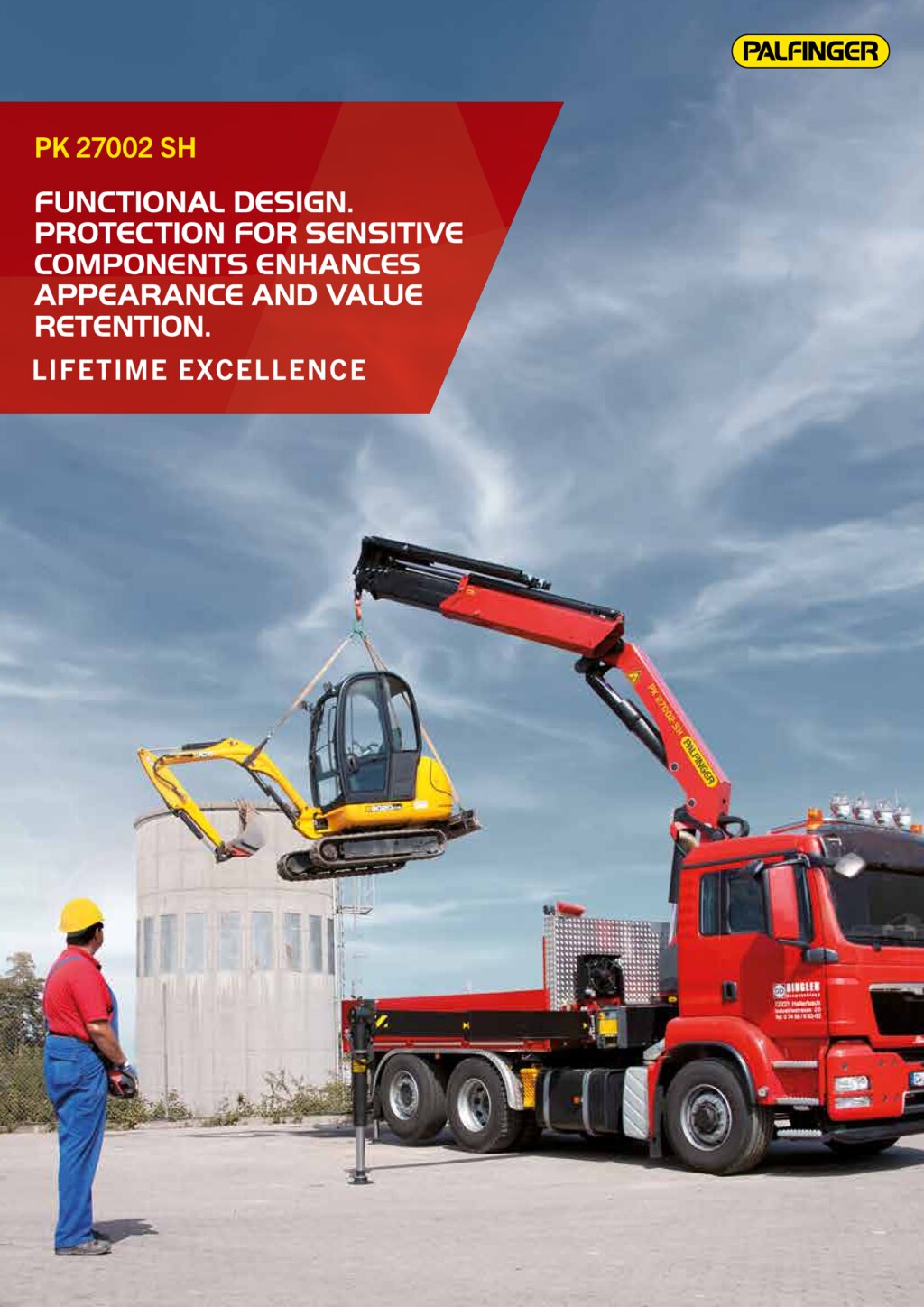

Brochures
