PK 78002 SH High Performance
Description
The Dual Power System for high outreach as well as for heavy duty operation.
- Maximum reliability due to PAL 150
- More efficiency with fly jib due to DPS Plus
- Increased operating times due to low-maintenance extension system
- Practical and attractive due to Functional Design
- Continous slewing for increased efficiency and speed
Attributes
Max. lifting moment
74.7 mt
Max. lifting capacity
25000 kg
Max. hydraulic outreach
20.4 m
Max. manual outreach
25.1 m
Max. outreach (with fly jip)
32.6 m
Slewing angle
∞
Slewing torque with 1 gear
4.5 mt
Slewing torque with 2 gears
7.0 mt
Stabilizer spread (std)
8.6 m
Width folded
2.55 m
Max. operating pressure
365 bar
Pump capacity
100 - 120 l/min
Dead weight (std.)
5908 kg
Lifting moment
Outreach
Slewing angle
Slewing torque (mt)
Pressure
Pump capacity (l/min)
Crane Weight
Crane Height
Crane Width
Installation WidthA
73.9
7.6
∞
4.5 / 7.0
36.5
100-120
5908
2455
2550
1555
B
72.0
9.5
∞
4.5 / 7.0
36.5
100-120
6246
2455
2550
1555

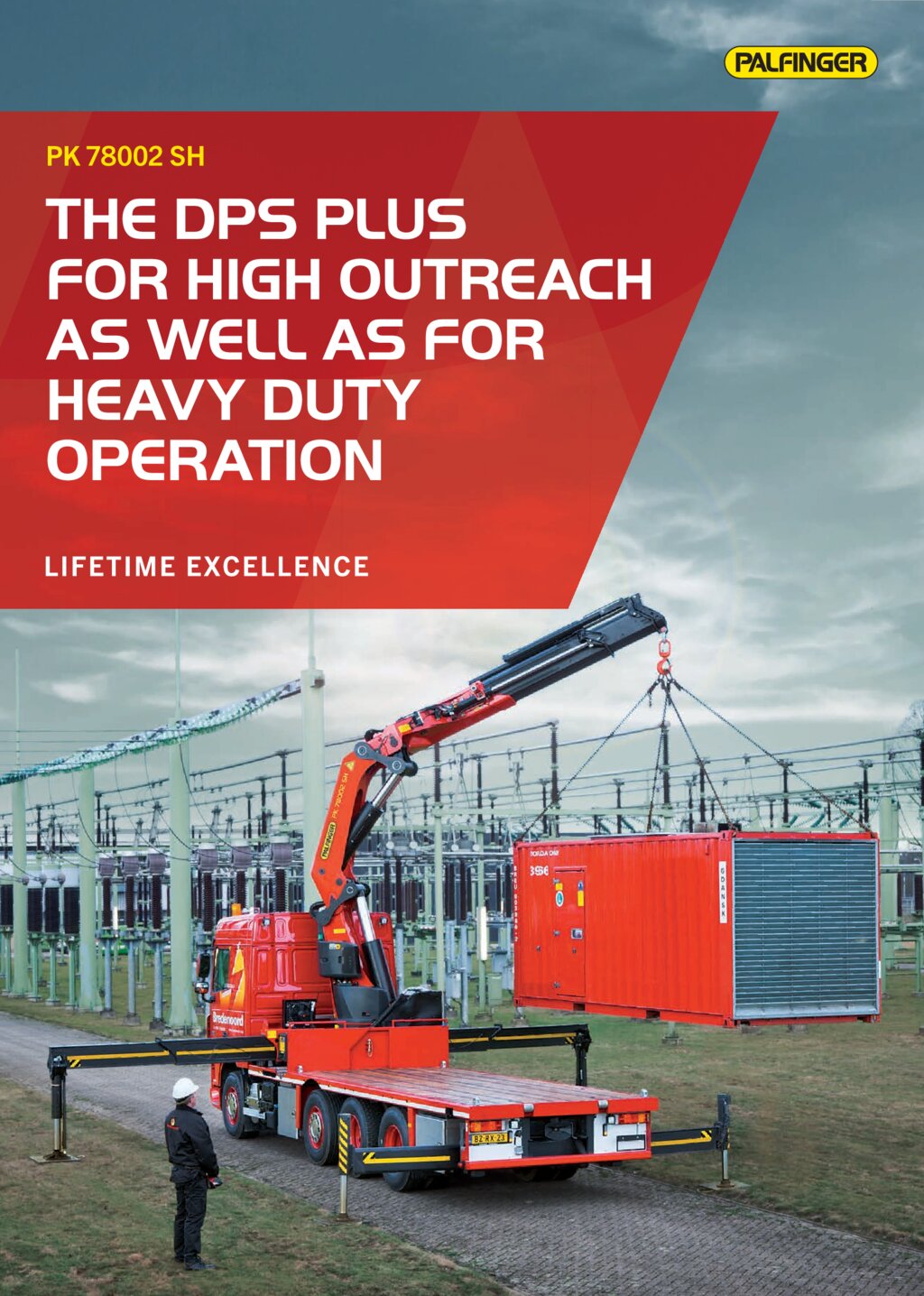

Brochures
